Welcome to the ultimate guide on measuring current, an essential aspect of electrical engineering and a fundamental skill for anyone working with electrical systems. Whether you're an engineer, technician, or simply curious about the world of electricity, understanding how to measure current accurately is crucial. In this comprehensive article, we will delve into the various techniques, tools, and best practices to help you master the art of current measurement.
Understanding Current and Its Significance
Current, in the context of electricity, refers to the flow of electric charge through a conductor. It is measured in amperes (A) and is a vital parameter in electrical circuits. Accurate current measurement is essential for a wide range of applications, including troubleshooting electrical issues, ensuring safety, optimizing energy efficiency, and conducting research.
In this guide, we will explore the different methods and instruments used to measure current, starting with the basic principles and gradually progressing to more advanced techniques. By the end, you'll have a solid understanding of the tools at your disposal and the confidence to tackle any current measurement challenge.
Basic Current Measurement Techniques
Let’s begin with the fundamentals of current measurement. There are several basic techniques that serve as the foundation for more complex measurements.
Ampere’s Law
One of the fundamental principles of current measurement is Ampere’s Law, which states that the current passing through a conductor is directly proportional to the magnetic field it generates. This law forms the basis for many current measurement methods.

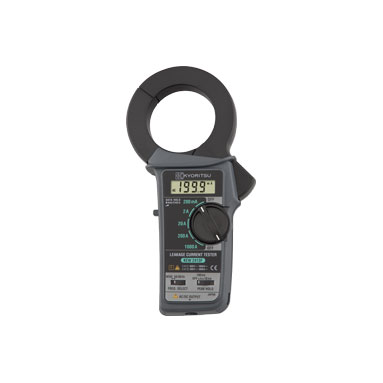

By using a device called a current clamp or current transformer, we can exploit Ampere's Law to measure current. These devices consist of a coil of wire that, when placed around a conductor, detects the magnetic field generated by the current flowing through it. The strength of the magnetic field is then converted into a measurable current value.
| Current Clamp | Current Transformer |
|---|---|
| Handheld, flexible, suitable for various conductor sizes. | Typically larger, used for high-current applications. |
| Measures current without breaking the circuit. | Requires breaking the circuit for installation. |
| Ideal for quick measurements and troubleshooting. | More accurate for continuous monitoring. |
Current clamps and transformers are widely used in electrical maintenance, providing a quick and non-intrusive way to measure current without disrupting the circuit.
Shunt Resistors
Shunt resistors are another basic yet effective method for measuring current. A shunt resistor is a low-value resistor connected in parallel with the circuit. When current flows through the resistor, it generates a voltage drop, which is proportional to the current. By measuring this voltage drop, we can calculate the current passing through the circuit.
Shunt resistors are commonly used in ammeters and multimeters, providing accurate current measurements. They are particularly useful for low-current applications and can be easily integrated into existing circuits.
Potential Transformers (PTs)
Potential transformers, or PTs, are devices designed to step down high voltages to a level suitable for measurement. While they are primarily used for voltage measurement, they can also be employed for current measurement in certain applications.
PTs work by transforming the primary voltage to a lower secondary voltage, which is then used to calculate the current. This technique is often used in power systems and high-voltage applications, providing a safe and accurate way to measure current in such environments.
Advanced Current Measurement Techniques
As we move beyond the basics, let’s explore some advanced techniques and instruments used in current measurement.
Hall Effect Sensors
Hall effect sensors utilize the Hall effect, a phenomenon where a voltage is generated across a conductor when a magnetic field is applied perpendicular to the current flow. By placing a Hall effect sensor near a conductor, we can measure the magnetic field and, consequently, the current flowing through it.
These sensors are highly accurate and are used in a variety of applications, including automotive systems, industrial automation, and even medical devices. They offer a non-intrusive and precise method of current measurement, making them a popular choice for modern electrical systems.
Rogowski Coils
Rogowski coils are flexible, toroidal coils designed to measure alternating current (AC) accurately. They work by inducing a voltage proportional to the rate of change of current flowing through the conductor enclosed by the coil.
Rogowski coils are particularly useful for measuring high-frequency AC currents and are known for their wide bandwidth and immunity to external magnetic fields. They are commonly used in power electronics, renewable energy systems, and electromagnetic compatibility (EMC) testing.
Fiber Optic Current Sensors (FOCS)
Fiber optic current sensors (FOCS) are a relatively new technology that offers several advantages over traditional current measurement methods. FOCS use the principle of the Faraday effect, where the polarization of light changes in the presence of a magnetic field.
By measuring the change in polarization, FOCS can accurately determine the current flowing through a conductor. These sensors are highly sensitive, immune to electromagnetic interference, and can operate over long distances. They are ideal for applications where traditional methods may be limited, such as in harsh environments or high-voltage systems.
Instrumentation and Calibration
To ensure accurate current measurements, proper instrumentation and calibration are essential. Here are some key considerations:
- Choose the right instrument: Select an instrument that suits your application, considering factors like accuracy, range, and resolution.
- Calibration: Regularly calibrate your instruments to maintain accuracy. Calibration involves comparing the instrument's readings with a known standard to adjust for any errors.
- Load Impedance: Take into account the load impedance when measuring current. Impedance can affect the accuracy of your measurements, especially in low-current applications.
- Temperature Compensation: Some instruments may be affected by temperature changes. Consider using temperature-compensated sensors or instruments for critical applications.
Safety Considerations
Measuring current can be dangerous if proper safety precautions are not followed. Always prioritize safety when working with electrical systems:
- Wear appropriate personal protective equipment (PPE), including gloves, eye protection, and non-conductive clothing.
- Ensure the power is off before making any measurements. Use a reliable power lock-out/tag-out system to prevent accidental energization.
- Verify the voltage and current ratings of the circuit you are working on to ensure your measurement equipment is suitable.
- Be cautious when working with high-current or high-voltage systems. Always follow the manufacturer's guidelines and industry best practices.
Real-World Applications
Current measurement finds applications in various industries and fields. Here are some examples:
- Electrical Maintenance: Technicians use current measurement to diagnose and troubleshoot electrical issues, ensuring reliable operation of equipment.
- Energy Management: Monitoring current consumption helps optimize energy efficiency and identify energy-saving opportunities.
- Power Generation and Distribution: Current measurement is critical for ensuring the stability and safety of power grids.
- Renewable Energy: Solar and wind energy systems rely on accurate current measurement for optimal performance and energy yield.
- Automotive and Transportation: Current measurement plays a crucial role in vehicle diagnostics and electric vehicle (EV) development.
Future Trends and Innovations
The field of current measurement continues to evolve with technological advancements. Here are some trends to watch out for:
- Wireless Current Sensors: Wireless sensors offer the convenience of remote monitoring and real-time data transmission, making them ideal for IoT applications.
- Miniaturization: Smaller, more compact sensors are being developed, making current measurement more accessible and easier to integrate into various systems.
- Artificial Intelligence (AI): AI-powered current measurement systems can analyze complex patterns and predict equipment failures, enhancing predictive maintenance.
- Quantum Sensors: Quantum technologies are being explored for their potential to revolutionize current measurement, offering unprecedented accuracy and sensitivity.
Conclusion
Measuring current accurately is a vital skill for anyone working with electrical systems. By understanding the basic and advanced techniques, choosing the right instruments, and prioritizing safety, you can ensure precise and reliable current measurements. Whether you’re a seasoned engineer or just starting out, this guide has equipped you with the knowledge to tackle current measurement challenges with confidence.
How do I choose the right current measurement instrument for my application?
+Consider factors such as the range of current you need to measure, accuracy requirements, and the environment in which the instrument will be used. Different instruments have varying capabilities, so choose one that aligns with your specific needs.
What are the advantages of fiber optic current sensors (FOCS)?
+FOCS offer high accuracy, immunity to electromagnetic interference, and the ability to operate over long distances. They are particularly useful in harsh environments and high-voltage systems.
How often should I calibrate my current measurement instruments?
+Calibration frequency depends on the instrument’s usage and environmental conditions. As a general guideline, calibrate your instruments annually or more frequently if they are used in critical applications.
What safety precautions should I take when measuring current in high-voltage systems?
+When working with high-voltage systems, ensure you have the proper training and follow strict safety protocols. Wear appropriate PPE, use insulated tools, and never work alone. Always refer to industry standards and manufacturer guidelines for specific safety measures.
